POST ANCHOR 4X4 ADJUSTABLE SIMPSON ZMAX
UPC Code: 044315430701 SIMPSON 4X4 ZMAX ADJ POST ANCHOR $12.79/EAProduct Overview

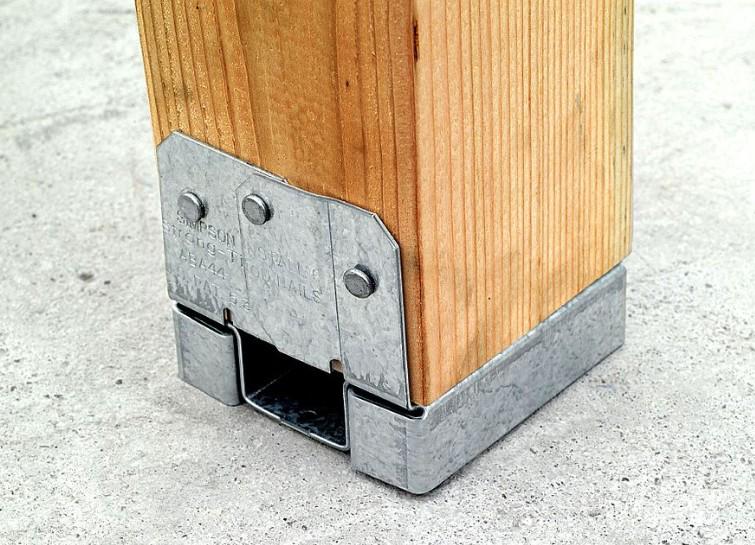

The ABA is designed to attach wooden posts to existing concrete. The built-in 1 in stand-off of this adjustable post-base helps to prevent rot at the end of the post. The ABA has a slotted anchor hole in the base for adjustability and attaches to the post with nails or Strong-Drive® SD Connector screws. This versatile post-base makes a cost-effective option for securing a post to the foundation. This post-base is available in model sizes for double 2X, 4 x 4, 4 x 6 and 6 x 6 lumber, both nominal and rough. The new double 2X size can be used for installing a structural post consisting of two 2 x 4 studs nailed together as well as for securing double 2X beams to a footing for ground-level decks.
Finish: ZMAX
Length: 3-3/8
Material: Steel
Material Gauge: 16 ga
Post Size: 4 x 4 in
Weight Capacity: 5925 lb Down DF/SP 690 lb Uplift
Width: 3-9/16
SIMPSON: ABA44Z
Key Features
- The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
- 1" stand-off design meets code requirements for structural posts installed in basements or exposed to weather or water splash
- Increased uplift loads for earthquake or wind loading
- ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
